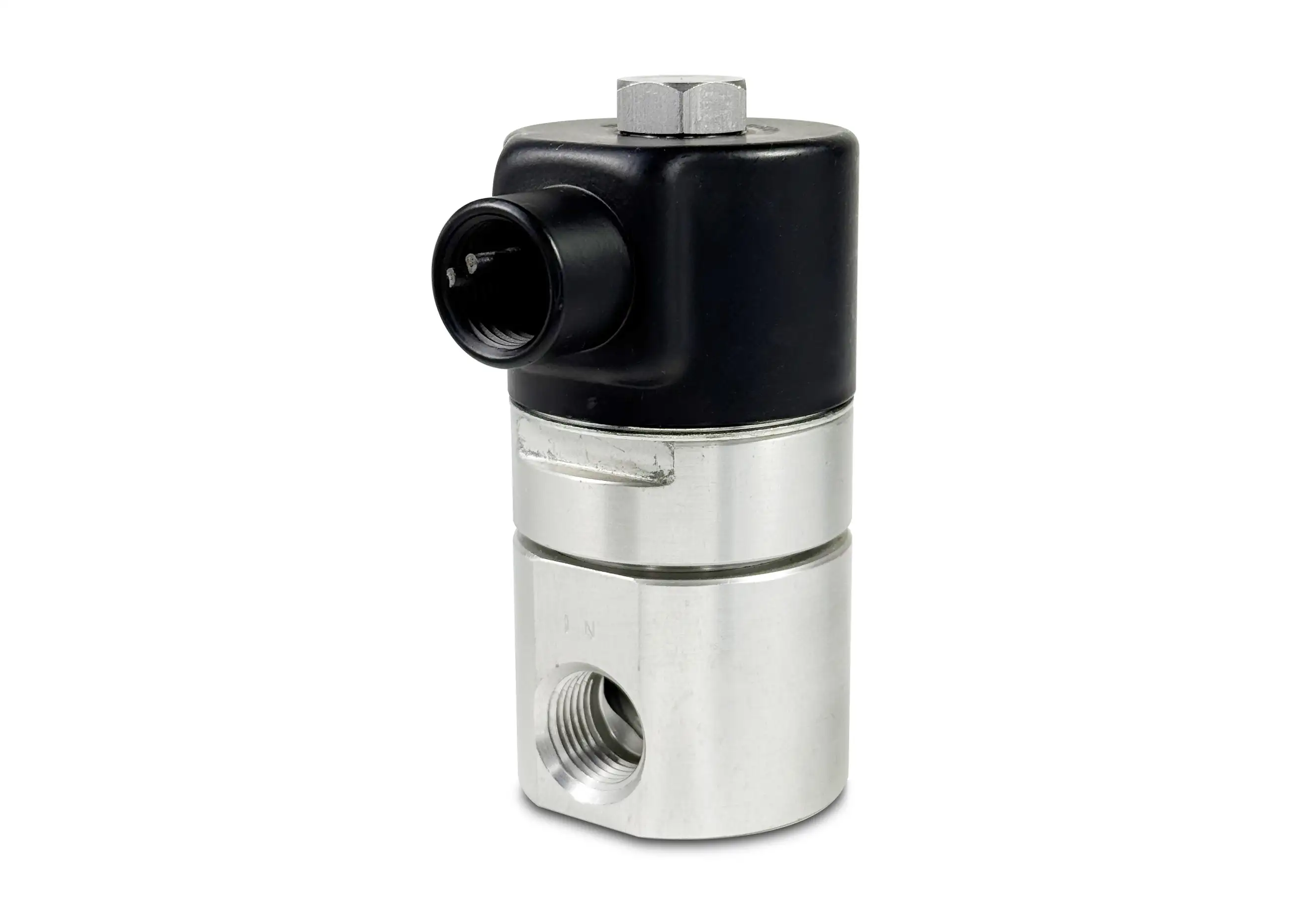

Series 80 Model 829B

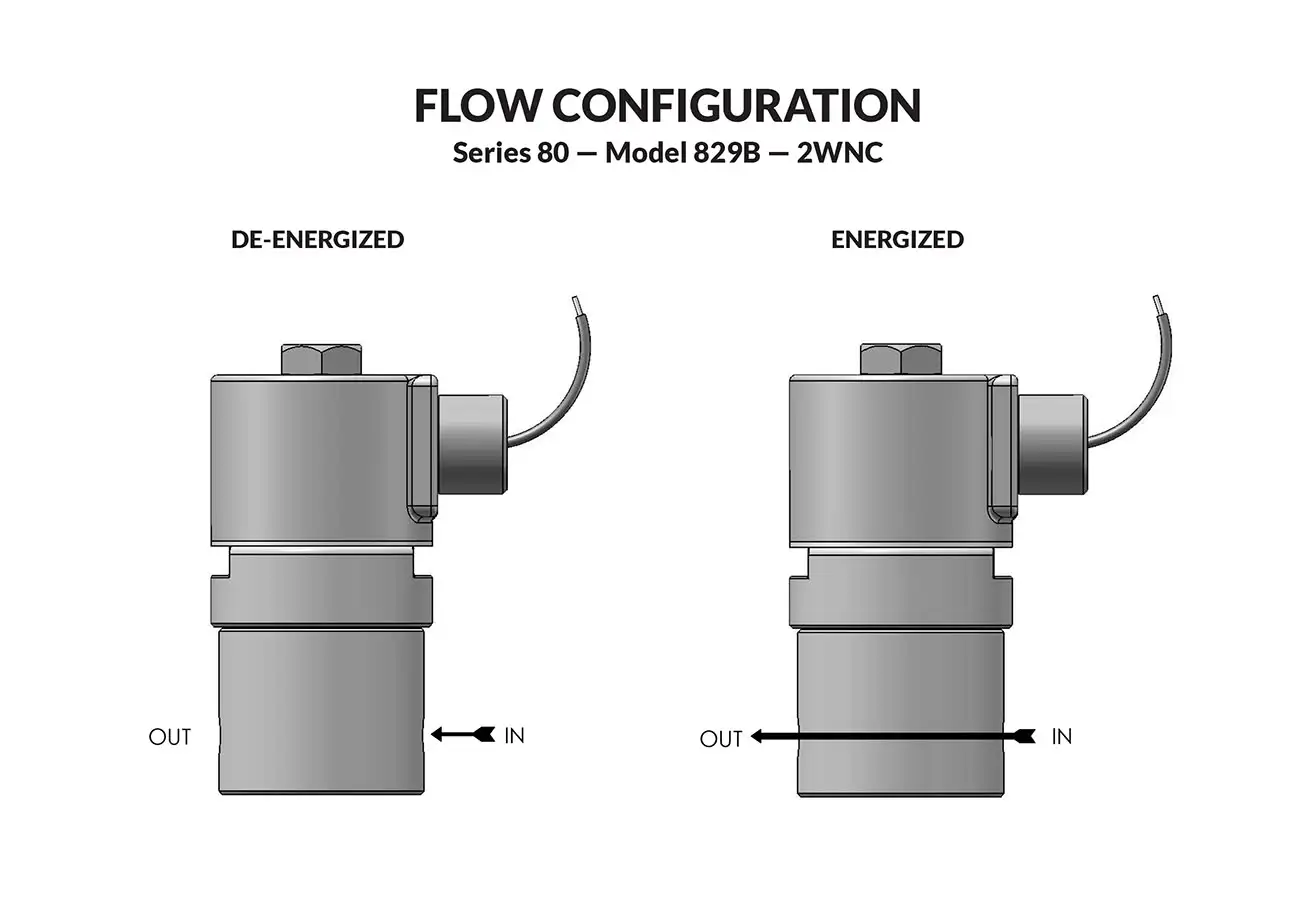

2-WAY NORMALLY CLOSED

Super valves that have ratings that formerly required valves of much greater size. They are higher flow at low pressures and have quick media fill or dump for air, inert gases, water and light oils for 10CST or less.

Large orifice.
Direct
Operates from 0 to 200psi.
NPT threaded connections.
Same coils and housings as our popular 70 Series.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.		ORIFICE SIZE	CV FACTOR	VALVE NUMBER
AC	DC			GROMMET HOUSING	CONDUIT HOUSING

200	200	1/2	3.50	829B11DGM	829B11DCM

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (829B11DGM 120/60) repair pack (K829BD AC)

No operator available

Operating Conditions:

Media:

Air, inert gases and liquids compatible with materials of construction.

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

1000 PSI

Leakage:

Bubble tight for standard valves.

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 18.0 Watts DC — 16.0 Watts

Coil Construction:

Molded and Potted Class F or Class H (Opt.)

Operating Speed:

Up to 100 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Anodized Aluminum

Internal Components:

Stainless Steel Anodized Aluminum.

Elastomers:

Buna (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

1/2″ NPT

Housing:

Grommet and 1/2" NPT conduit — many options available.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

2.20 lbs.

Repair Packs:

See table above.

Options:

Alternate Elastomers, valves for oil and water available.*

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/

Series 80 Valves Conduit

1/2-14 NPT
2WNC
CONDUIT CONNECTION

Series 80 Valves Grommet

1/2-14 NPT
2WNC
GROMMET HOUSING WITH LEADS

Nomenclature Tab

Nomenclature Chart (non 58 series)

Nomenclature, all valve series except 58

* Consult representative or factory for options and specifications
