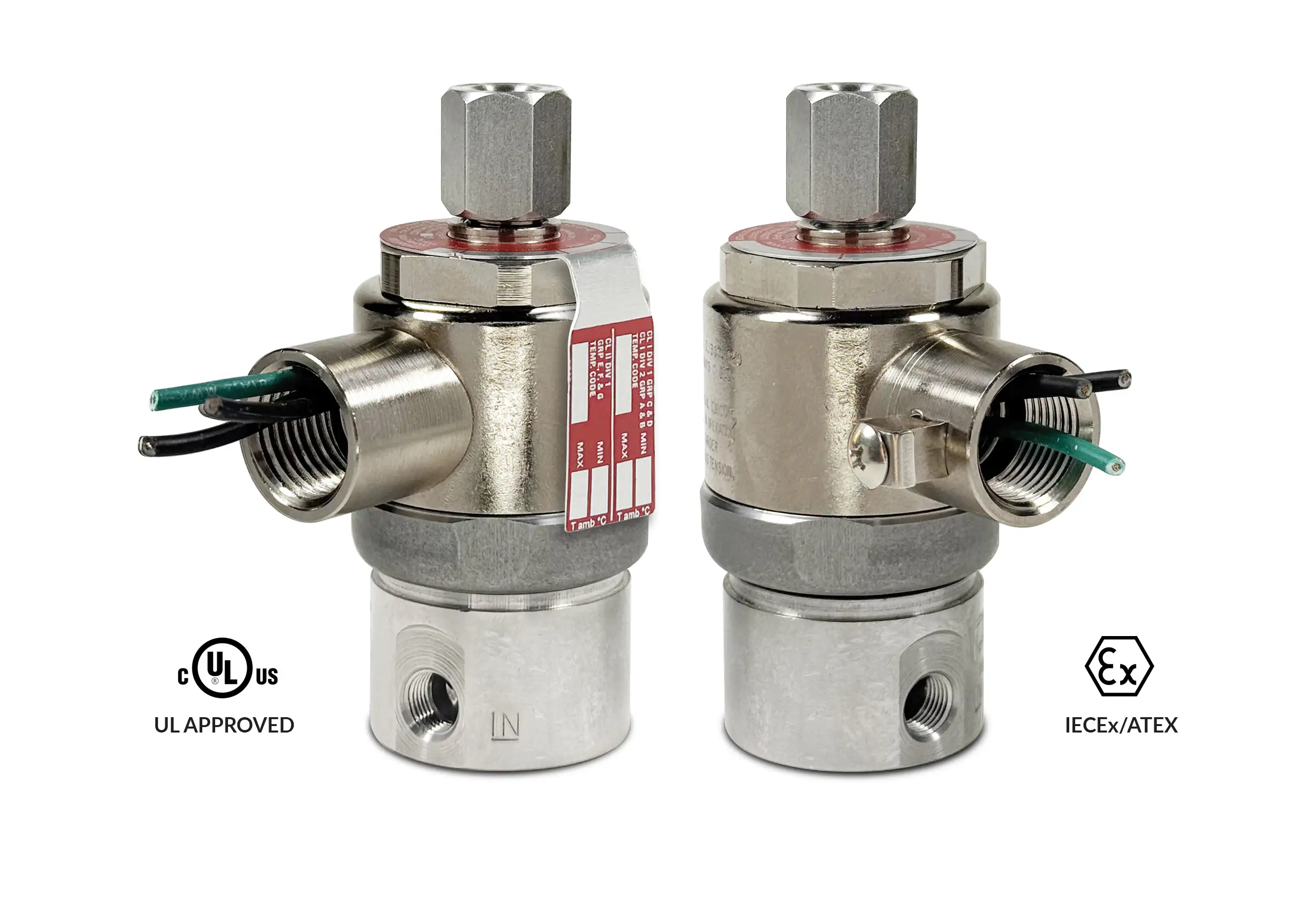

Series 20 Model EL21

2-WAY NORMALLY OPEN

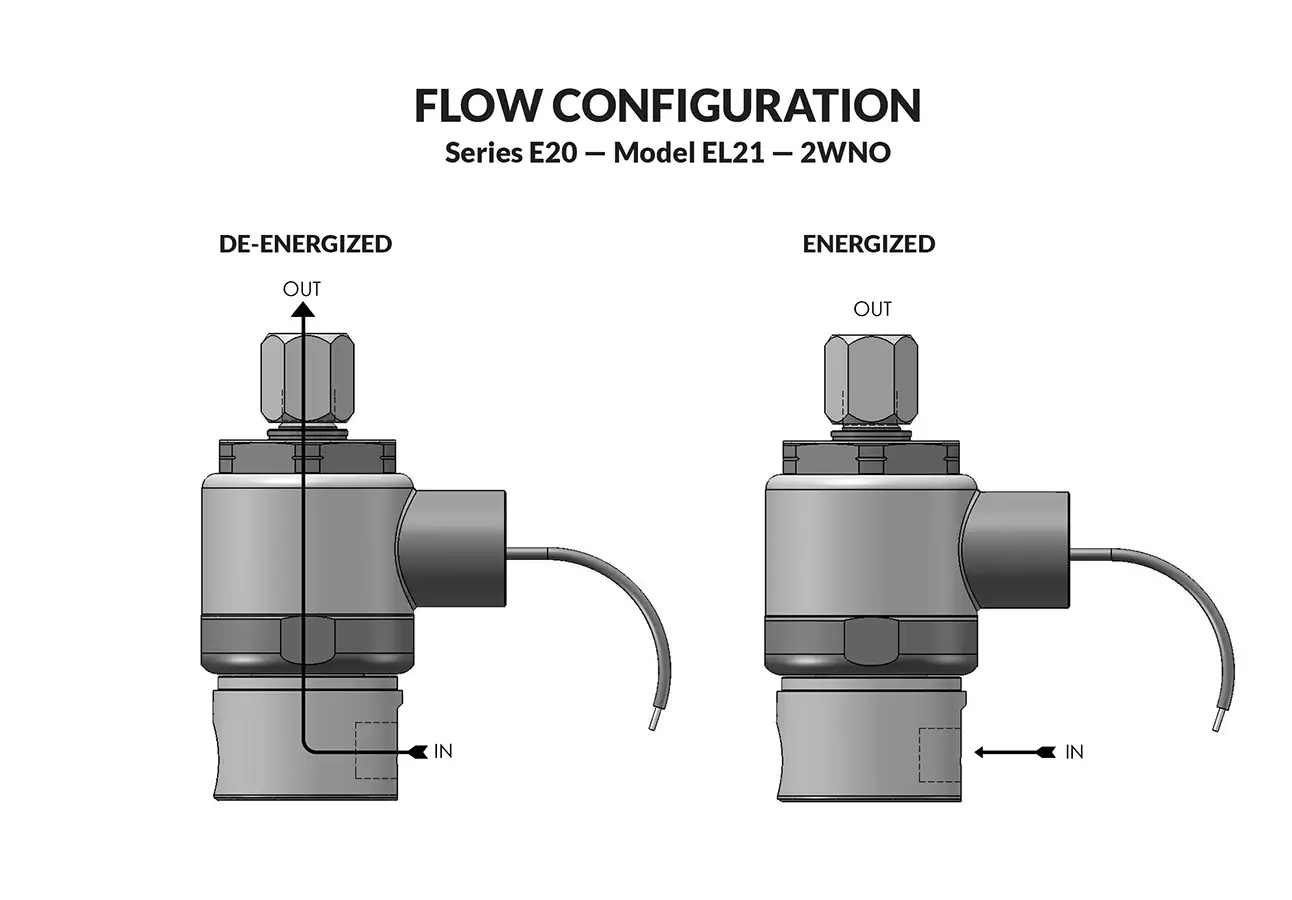

Hazardous Location — 2-Way Normally Open
PeterPaul explosion proof solenoid valves are used where fire or explosion hazards exist due to the presence of flammable gas or vapors, flammable liquids, combustible dust or easily ignitable fibers. The low watt feature assures low power consumption reducing drain on electrical systems. This is a benefit for renewable energy applications and where the solenoid valve must be on continuously.

• Heavy duty and made of stainless steel.
• A real workhorse with proven performance.
• Low power consumption best for renewable energy and limited
resource applications.
• Wide range of orifice sizes from 1/32′′ to 1/8′′.

Tabs

Specifications

MAX. OPER. PRESS. DIFF.

ORIFICE SIZE

CV FACTOR

VALVE NUMBER

1/8 NPT PORTS

1/4 NPT PORTS

400

1/32

.024

EL21G7XCCP-∆

EL21G9ZCCP-∆

220

3/64

.053

EL21H7XCCP-∆

EL21H9ZCCP-∆

110

1/16

.095

EL21J7XCCP-∆

EL21J9ZCCP-∆

3/32

.156

EL21K7XCCP-∆

EL21K9ZCCP-∆

1/8

.204

EL21N7XCCP-∆

EL21N9ZCCP-∆

Ordering Information:

Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (EL21N7DCCP-N 24/DC) repair pack (2KEL21N-N DC)

When ordering operators add the letter “O” to the front of the valve number, and the body code will change. Contact the factory for the complete part number.

Operating Conditions:

Media:

Air, water, and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require other seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

-22°F(-30°C) to 140°F (60°C) Exception: FKM is -4°F (-20°C) to 140°F (60°C).

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5,000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12, 24/DC

Nominal Power:

1.8 Watts

Coil Construction:

Potted Class F coil with 36” black lead wires and 36” green ground wire.

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.)

Internal Components:

Stainless Steel

Elastomers:

Buna, Fluorocarbon (FKM), Low Temperature Buna, EPDM or Neoprene.

Orifice Diameter:

See table above.

Porting:

1/8” OR 1/4” NPT

Housing:

Flame-Proof construction with 1/2" NPT conduit

Listings:

Valves are cULus listed for Hazardous Locations. — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2 Groups A, B, C, D, E, F, and G.

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

1.38 lbs

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*
