SERIES 20 SOLENOID VALVE SPECIFICATIONS
OPERATING CONDITIONS
Media: Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils requires special seal materials - Consult representative or factory.
Value Temperature Range: STANDARD VALUES - 0°F (-18°C) to 104° (40°C) ambient; 0°F (18°C) to 150°F (65°C) media. OPTIONAL VALUES - can tolerate much higher or much lower ambient and media temperatures. Consult factory or specifics.
Maximum Operating Pressure Defferentials: See Catalog listing.
Burst Pressure: 5000 PSI
Leakage: Bubble tight for standard valves
Vacuum: To 5 Microns - Consult factory
ELECTRICAL CHARACTERISTICS
Coil Voltage: 5 to 825 VAC 50-60 HZ. - 1.8 to 265V DC
Nominal Power: D.C. -9.5. Watts A.C. -8.7 Watts
Coil Construction: Molded Class F
Typical Response Time on Air: 4-16 Milliseconds - all series
MECHANICAL CHARACTERISTICS
Body: Stainless steel (standard)
Orifice Diameter: See catalog listings
Porting: See catalog listing
Housing: Grommet & ½" NPT conduit
Listings: Most valves are U.L. and CSA listed - Consult factory for specifics.

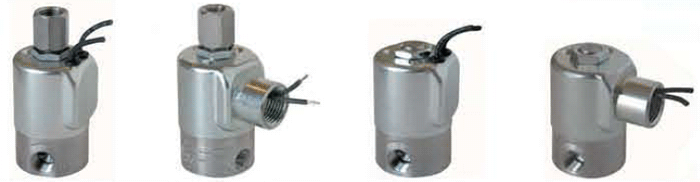

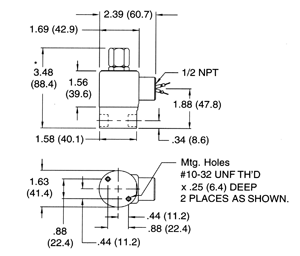

2-WAY NORMALLY
OPEN GROMMET
OR ANY 3-WAY
2-WAY NORMALLY
OPEN CONDUIT
OR ANY 3-WAY

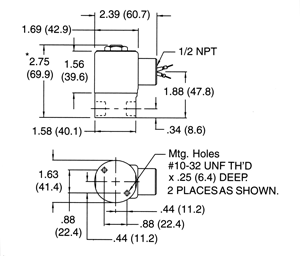

2-WAY NORMALLY
CLOSED ONLY
GROMMET
2-WAY NORMALLY
CLOSED ONLY
CONDUIT
|
SERIES 20 - MODEL 21
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| *400 (700)* |
400 (700) |
1/32 |
.024 |
| 235 (500) |
235 (500) |
3/64 |
.053 |
| 150 (350) |
150 (350) |
1/16 |
.095 |
| 100 (150) |
100 (150) |
3/32 |
.156 |
| 35 (40) |
35 (40) |
1/8 |
.201 |
|
GROMMET HOUSING
Grommet Value WT. 1.13 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.19 LB
|
| 1/8 NPT PORTS |
1/4 NPT PORTS |
1/8 NPT PORTS |
1/4 NPT PORTS |
| 21G7XGV |
21G9ZGV |
21G7XCV |
21G9ZCV |
| 21H7XGV |
21H9ZGV |
21H7XCV |
21H9ZCV |
| 21J7XGV |
21J9ZGV |
21J7XCV |
21J9ZCV |
| 21K7XGV |
21K9ZGV |
21K7XCV |
21K9ZCV |
| 21N7XGV |
21N9ZGV |
21N7XCV |
21N9ZCV |
|
|
* VALVES WITH 1/8 SLEEVE ORIFICE ARE UL LISTED ONLY
|
|
SERIES 20 - MODEL 22
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 500 |
500 |
1/32 |
.024 |
| 250 (500) |
250 (500) |
3/64 |
.052 |
| 200 (400) |
200 (400) |
1/16 |
.095 |
| 125 (300) |
125 (250) |
3/32 |
.156 |
| 100 (200) |
100 (200) |
1/8 |
.284 |
| 75 (200) |
50 |
5/32 |
.404 |
| 50 |
25 |
3/16 |
.500 |
| 20 |
5 |
1/4 |
.700 |
| 15 |
- |
5/16 |
1.000 |
|
GROMMET HOUSING
Grommet Value WT. 1.06 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.13 LB
|
| 1/8 NPT PORTS |
1/4 NPT PORTS |
1/8 NPT PORTS |
1/4 NPT PORTS |
| 22G7DGV |
22G9DGV |
22G7DCV |
22G9DCV |
| 22H7DGV |
22H9DGV |
22H7DCV |
22H9DCV |
| 22J7DGV |
22J9DGV |
22J7DCV |
22J9DCV |
| 22K7DGV |
22K9DGV |
22K7DCV |
22K9DCV |
| 22N7DGV |
22N9DGV |
22N7DCV |
22N9DCV |
| 22O7DGV |
22O9DGV |
22O7DCV |
22O9DCV |
| 22P7DGV |
22P9DGV |
22P7DCV |
22P9DCV |
| 22R7DGV |
22R9DGV |
22R7DCV |
22R9DCV |
| - |
22S9DGV |
- |
22S9DCV |
|
|
* VALVES WITH 1/8 SLEEVE ORIFICE ARE UL LISTED ONLY
|
|
SERIES 20 - MODEL 23
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 400 |
400 |
1/32 |
1/32 |
.024 |
.024 |
| 150 (200) |
150 (200) |
3/64 |
1/16 |
.052 |
.095 |
| 100 (135) |
100 (135) |
1/16 |
1/16 |
.095 |
.095 |
| 100 (135) |
100 (135) |
1/16 |
3/32 |
.095 |
.156 |
| 75 (100) |
75 (100) |
3/32 |
3/32 |
.156 |
.156 |
| 50 (70) |
50 (70) |
1/8 |
3/32 |
.284 |
.156 |
| 35 (40) |
35 (40) |
1/8 |
1/8 |
.284 |
.201 |
| 20 |
20 |
3/16 |
3/32 |
.500 |
.156 |
| 20 |
20 |
3/16 |
1/8 |
.500 |
.201 |
| 15 |
- |
1/4 |
3/32 |
.700 |
.156 |
| 15 |
- |
1/4 |
1/8 |
.700 |
.201 |
|
GROMMET HOUSING
Grommet Value WT. 1.06 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.13 LB
|
| 1/8 NPT PORTS |
1/4 NPT PORTS |
1/8 NPT PORTS |
1/4 NPT PORTS |
| 23GG7DGV |
23GG9DGV |
23GG7DCV |
23GG9DCV |
| 23HJ7DGV |
23HJ9DGV |
23HJ7DCV |
23HJ9DCV |
| 23JJ7DGV |
23JJ9DGV |
23JJ7DCV |
23JJ9DCV |
| 23JK7DGV |
23JK9DGV |
23JK7DCV |
23JK9DCV |
| 23KK7DGV |
23KK9DGV |
23KK7DCV |
23KK9DCV |
| 23NK7DGV |
23NK9DGV |
23NK7DCV |
23NK9DCV |
| 23NN7DGV* |
23NN9DGV* |
23NN7DCV* |
23NN9DCV* |
| 23PK7DGV |
23PK9DGV |
23PK7DCV |
23PK9DCV |
| 23PN7DGV* |
23PN9DGV* |
23PN7DCV* |
23PN9DCV* |
| 23RK7DGV |
23RK9DGV |
23RK7DCV |
23RK9DCV |
| 23RN7DGV* |
23RN9DGV* |
23RN7DCV* |
23RN9DCV* |
|
|
* VALVES WITH 1/8 SLEEVE ORIFICE ARE UL LISTED ONLY
|
|
SERIES 20 - MODEL 24
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 400 |
400 |
1/32 |
1/32 |
.024 |
.024 |
| 150 (225) |
150 |
3/64 |
1/16 |
.052 |
.095 |
| 100 (150) |
100 |
1/16 |
1/16 |
.095 |
.095 |
| 100 (150) |
100 |
1/16 |
3/32 |
.095 |
.156 |
| 100 (125) |
100 |
1/16 |
1/8 |
.095 |
.284 |
| 75 (90) |
75 |
3/32 |
1/8 |
.156 |
.284 |
| 30 |
30 |
1/8 |
1/8 |
.201 |
.284 |
|
GROMMET HOUSING
Grommet Value WT. 1.06 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.13 LB
|
| 1/8 NPT PORTS |
1/4 NPT PORTS |
1/8 NPT PORTS |
1/4 NPT PORTS |
| 24GG7XGV |
24GG9ZGV |
24GG7XCV |
24GG9ZCV |
| 24HJ7XGV |
24HJ9ZGV |
24HJ7XCV |
24HJ9ZCV |
| 24JJ7XGV |
24JJ9ZGV |
24JJ7XCV |
24JJ9ZCV |
| 24JK7XGV |
24JK9ZGV |
24JK7XCV |
24JK9ZCV |
| 24JN7XGV |
24JN9ZGV |
24JN7XCV |
24JN9ZCV |
| 24KN7XGV |
24KN9ZGV |
24KN7XCV |
24KN9ZCV |
| 24NN7XGV* |
24NN9ZGV* |
24NN7XCV* |
24NN9ZCV* |
|
|
* VALVES WITH 1/8 SLEEVE ORIFICE ARE UL LISTED ONLY
|
|
SERIES 20 - MODEL 25
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 500 |
500 |
1/32* |
1/32 |
.024* |
.024 |
| 235 (400) |
235 (300) |
3/64* |
3/64 |
.052* |
.052 |
| 200 (225) |
200 (200) |
1/16* |
3/64 |
.095* |
.052 |
| 150 (225) |
150 (200) |
1/16* |
1/16 |
.095* |
.095 |
| 100 (150) |
100 (125) |
3/32* |
3/32 |
.156* |
.156 |
| 100 (125) |
100 |
1/8* |
3/32 |
.284* |
.156 |
| 35 (40) |
35 (40) |
1/8* |
1/8 |
.284* |
.201 |
|
GROMMET HOUSING
Grommet Value WT. 1.13 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.19 LB
|
| 1/8 NPT PORTS |
1/4 NPT PORTS |
1/8 NPT PORTS |
1/4 NPT PORTS |
| 25GG7XGV |
25GG9ZGV |
25GG7XCV |
25GG9ZCV |
| 25HH7XGV |
25HH9ZGV |
25HH8XDCV |
25HH9ZCV |
| 25JH7XGV |
25JH9ZGV |
25JH7XCV |
25JH9ZCV |
| 25JJ7XGV |
25JJ9ZGV |
25JJ7XCV |
25JJ9ZCV |
| 25KK7XGV |
25KK9ZGV |
25KK7XCV |
25KK9ZCV |
| 25NK7XGV |
25NK9ZGV |
25NK7XCV |
25NK9ZCV |
| 25NN7XGV* |
25NN9ZGV* |
25NN7XCV* |
25NN9ZCV* |
|
|
* VALVES WITH 1/8 SLEEVE ORIFICE ARE UL LISTED ONLY
|
|
SERIES 20 - MODEL 26
|
| |
VALVE NUMBER |
†MAX. OPER.
PRESS. DIFF.
|
ORIFICE
SIZE
|
CV
FACTOR
|
| AC |
DC |
INLET EXH. |
INLET EXH. |
| 400 |
400 |
1/32* |
1/32 |
.024* |
.024 |
| 150 |
150 |
3/64* |
3/64 |
.052* |
.052 |
| 100 |
100 |
1/16* |
1/16 |
.095* |
.095 |
| 75 |
75 |
3/32* |
3/32 |
.156* |
.156 |
| 35 |
35 |
1/8* |
1/8 |
.284* |
.201 |
|
GROMMET HOUSING
Grommet Value WT. 1.13 LB.
|
CONDUIT HOUSING
Conduit Valve WT. 1.19 LB
|
| 1/8 NPT PORTS |
1/4 NPT PORTS |
1/8 NPT PORTS |
1/4 NPT PORTS |
| 26GG7XGV |
26GG9ZGV |
26GG7XCV |
26GG9ZCV |
| 26HH7XGV |
26HH9ZGV |
26HH7DCV |
26HH9ZCV |
| 26JH7XGV |
26JH9ZGV |
26JH7XCV |
26JH9ZCV |
| 26JJ7XGV |
26JJ9ZGV |
26JJ7XCV |
26JJ9ZCV |
| 26KK7XGV |
26KK9ZGV |
26KK7XCV |
26KK9ZCV |
| 26NN7XGV* |
26NN9ZGV* |
26NN7XCV* |
26NN9ZCV* |
|
|
* VALVES WITH 1/8 SLEEVE ORIFICE ARE UL LISTED ONLY
|
* Normally closed orifice
†Ratings in brackets are options extended ratings; consult factory
|
