Peter Paul Electronics offers a large selection of optional seal materials. Standard seal material for catalog valves is nitrile elastomer, a good general purpose compund, satisfactory for most applications. Insert materials such as FKM, Nordel, Kel-F, and Teflon are available for applications where excessive heat is a factor, or for use with any media that can cause insert swelling or deterioration. Consult factory for proper usage. |
|

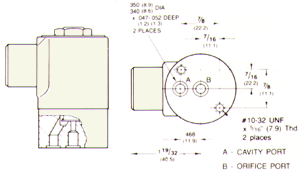

Series 20, 20 & 50 valves can be secured to bracket |
 |
 |
OPTION A - ALUMINUM SHADING RING OPTION S - SILVER SHADING RING Used on valves where media is harmful to standard copper ring, but will not attack silver rings. |
 |
OPTION V - BUILT-IN MUFFLER Compact muffler located in valve outlet port to silence excessive noise. Muffler location will vary according to valve type - 3 WNC Valve Muffler in sleeve exhaust port, 2 WNC Valve Muffler in body outlet port, etc. |
|
||||
|
||||
