Solenoid Valves

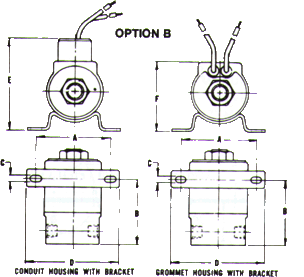

BRACKET DIMENSIONS FOR ALL SERIES


INCHES
SER.

A B C D E F
20
21/8 131/32 13/64 213/16 243/64 163/64
30
21/8 117/32 13/64 213/16 243/64 163/64
50
11/2 117/32 3/16 115/16 17/8 111/32
70

23/4 27/16 13/64 37/16 35/16 239/64

MILLIMETERS
20
54 50 5.2 71.3 67.9 50.4
30
54 38.9 5.2 71.3 67.9 50.4
50
38.1 38.9 4.8 49.2 47.6 34.1
70

69.8 61.9 5.2 87.3 84.1 66.3


NEMA ENCLOSURE CLASSIFICATION

The NEMA Enclosure Classification was basically created as a guide for those that manufacture and sell enclosures as a product that others mount their apparatus, components, or equipment in. NEMA terminology is sometimes asked about in the field regarding valve housings.

We off the following as a suggested quide regarding our product line.

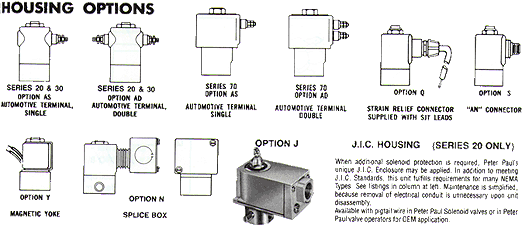

Peter Paul enclosures C, G, S, AD, AS, and Q with non-molded coils provide a NEMA 1 function (General Purpose-Indoors). Where enclosures C, G, S, AD, AS, and Q have molded coils they provide the following NEMA functions:
NEMA 1 (General Purpose - Indoors)
NEMA 2 (Dripproof - Indoors)
NEMA 3 (Driptight - Outdoors)



Solenoid enclosure* EP with molded coil provide the following NEMA functions:
NEMA 7C & 7D & U.L. Class I - Groups C & D - Explosion Proof
NEMA 8C & 8D & U.L. CLASS I - Groups C & D - Explosion Proof
NEMA 9E, 9F, & 9G & U.L. Class II - Groups,E,F, & G - Explosion Proof

Solenoid enclosures** P&J provide the following NEMA functions:
NEMA 3 R (Rainproof & Sleet - (Ice) Resistant - Outdoors)
NEMA 3 S (Dusttight, Raintight & Sleet (Ice) Proof - Outdoors)
NEMA 4    (Watertight & Dusttight - Indoors & Outdoors)
NEMA 4 X (Watertight, Dusttight & Corrosion Resistant - Indoors &

      Outdoors)
NEMA 6    (Submersible (Brief Submersions), Watertight, Dusttight
      - Outdoors & Sleet (Ice) Resistant - Indoors & Outdoors)
NEMA 11  (Corrosion Resistant & Dripproof - Oil Immersed - Indoors)
NEMA 12  (Industrial Use - Dusttight & Driptight - Indoors)
NEMA 13  (Oiltight & Dusttight - Indoors)

 *E.P. - Explosion Proof
**P     - Potted
  J      - JIC
