STANDARD COILS-supplied with Peter Paul valves are non-molded, with class A (105ºC) rating. 24" length leads (#18 wire) are standard, with other lead lengths available upon request.

OPTION M - waterproof moldedcoil - class A (105ºC) rating. Coilcompletely molded in epoxy for maximum moisture resistance.

OPTION KM - molded spade terminal coil and yoke - epoxy molded coil with two ¼ spade terminals for quick assembly and disconnect.

OPTION P - coil epoxy potted into housing - offers max. moisture and vibration resistance. Meets UL raintight & rainproof housing requirements and NEMA - 4 Classifications.

* NOTE: Height of valve increases with Spade Terminal option - see drawings below.

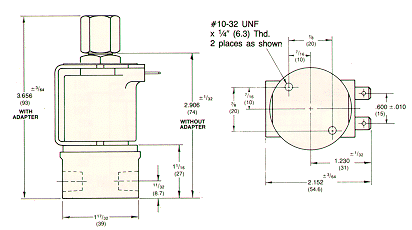

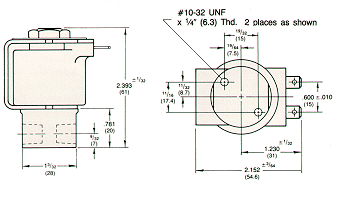

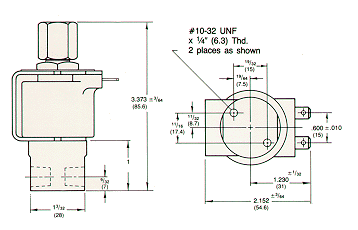

SERIES 20	SERIES 30 3-WAY VALVE SERIES 30 2-WAY VALVE

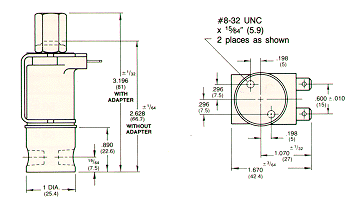

SERIES 50
